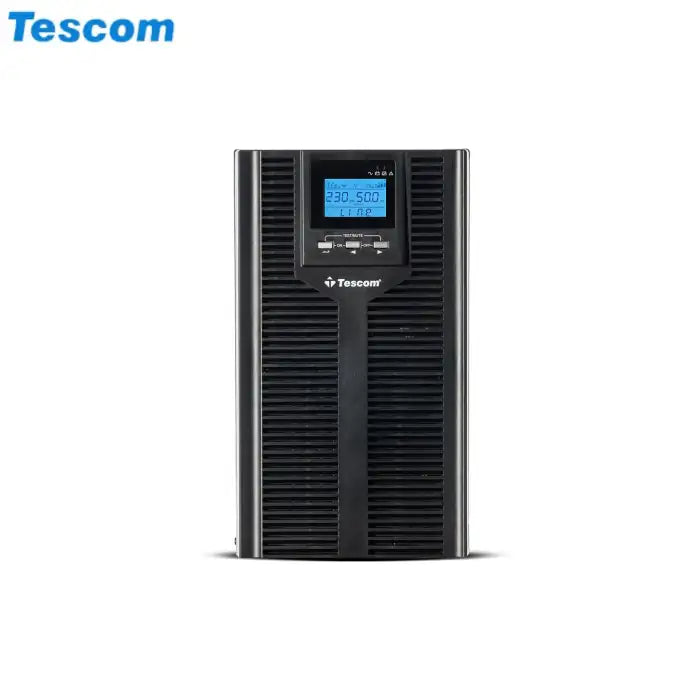

Refurbished | UPS 3KVA/3000W TESCOM PRIME TOWER NEW

Refurbished | UPS 3KVA/3000W TESCOM PRIME TOWER NEW

€604,50 EUR
€604,50 EUR
Έκπτωση Εξαντλήθηκε
Οι φόροι συμπεριλαμβάνονται. Τα έξοδα αποστολής υπολογίζονται κατά την ολοκλήρωση της αγοράς.

Αν θες να κόψεις τιμολόγιο κάνε εγγραφή για εταιρείες εδώ
Χαρακτηριστικά Προϊόντος
Κωδικός Προϊόντος 0.503.716
Part Number ALF-0.503.716
Κατασκευαστής Tescom
Rated voltage 208 / 220 / 230 / 240 Vac
Voltage range 110 - 176 Vac (linear derating between 50% and 100% load ), 176 - 280 Vac (no derating), 280 - 300 Vac (derating 50%)
Frequency 50-60 Hz (auto-sensing)
Power factor >= 0.99
Bypass voltage range - 40% +20% (settable)
Voltage 208 / 220 / 230 / 240 Vac (settable via LCD)
Voltage regulation ±1%
Waveform Sinusoidal
Total Harmonic distortion (THDv) <= 2% (linear load); <= 5% (non-linear load)
Crest factor 3:1
Overload 105% -110% for 30 min, 110% - 130% for 10 min, 130% - 150% for 30s, > 150% for 500 ms
Battery type Sealed lead acid maintenance free battery
DC voltage 72 V (S)
Inbuilt battery 6 x 9 Ah
Charging current 12 A
Recharge time Standard model: 90% capacity restored in 3 hours, Long time model: depend on the capacity of battery
Mains Efficiency Mains mode: >= 94.5%, Battery mode: >= 92.5%, ECO mode: >= 99.0%
Transfer time Mains mode to battery mode: Oms Inverter mode to bypass mode: 4 ms (typical)
Protections Short-circuit, overload, overtemperature, battery discharge protection and fan testing protection
Communication port RS232 (standard), USB / RS485 / dry contacts / SNMP (optional)
Display LCD + LED
Standards EN 62040-1, EN 62040-2, EN 61000-3-2, EN 61000-3-3, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, IEC 61000-2-2, IEC 62040-2, IEC 62040-1
Operating humidity 0- 95% RH @ 0- 40°C (non-condensing)
Storage temperature -25°C - 55°C (exclude batteries)
Altitude <= 1000m, above 1000m derating 1% for each additional 100 m
IP rating IP 20
Noise level at 1m <= 50 dB
Dimensions (W × D × H) (mm) 191 x 419 x 335
Packaged dimensions 277 x 500 x 435
Net weight 23.8 kg
