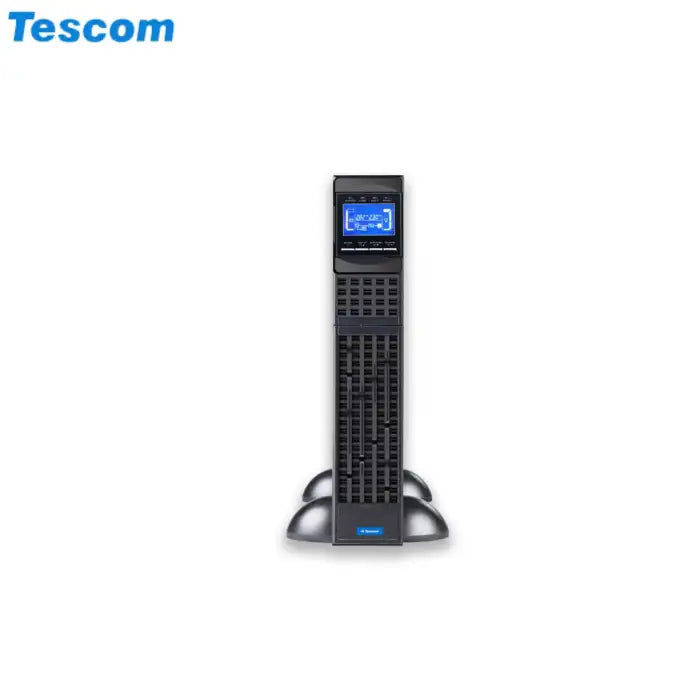

Refurbished | UPS 1000VA 1101SRT TESCOM NEOLINE SRT PRO TOWER/RACK 900W NEW

Refurbished | UPS 1000VA 1101SRT TESCOM NEOLINE SRT PRO TOWER/RACK 900W NEW

€323,58 EUR
€323,58 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Αν θες να κόψεις τιμολόγιο κάνε εγγραφή για εταιρείες εδώ
Χαρακτηριστικά Προϊόντος
Κωδικός Προϊόντος 0.502.043
Part Number ALF-0.502.043
Rated voltage 208 V / 220 V / 230 V / 240 Vac
Voltage range "110 -176 Vac (linear derating between 50% and 100% load), 176 - 280 Vac (no derating), 280 - 300 Vac (derating
Frequency 40 - 70 Hz (auto-sense)
Power factor >= 0.99
Bypass voltage range - 25% + 15% settable
Voltage 208 / 220 / 230 / 240 Vac (settable via LCD)
Voltage regulation 1 +-
Waveform Sinusoidal
Total harmonic distortion (THDv) <= 2% (linear load), <= 5% (non-linear load
Crest factor 3:1
Overload 105% - 125% for 1 min, 125% - 150% for 30 s, > 150% for 300 ms
DC voltage 24 V (S)
Inbuilt battery 2 x 9 A
Charging current (max.) 1A
Recharge time Standard model: 90% capacity restored in 4 hours, Long time model: depend on the capacity of battery
Efficiency >= 90% (Mains mode), >= 85% (Battery mode), >= 95% (ECO mode)
Transfer time Mains mode to battery mode: 0 ms, Inverter mode to bypass mode: 4 ms (typical)
Protections Short-circuit, overload, overtemperature, battery discharge protection and fan testing protection
Communications RS232 (standard), USB / RS485 / dry contacts / SNMP (optional)
Display LCD + LED
Standards EN 62040-1, EN 62040-2, EN 61000-3-2, EN 61000-3-3, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, IEC 61000-2-2, IEC 62040-2, IEC 62040-1
Operating temperature 0 - 40°C
Storage temperature from -25 to 55 °C (without batteries)
Relative Humidity 0 - 95% (non-condensing)
Altitude <= 1000 m, derating 1% for each additional 100 m
IP rating IP 20
Noise level at 1m <= 50 Db
Dimensions 440 x 338 x 88
Packaged dimensions 545 x 428 x 194
Net weight (kg) 10.6
Gross weight (kg) 11.3
